ECON-L5P

Replaceable: A6CON-L5P and 35505-6000-B0M GF NYCC-20-2230-FM

• Save time! CC Link standard connector
• Compact, reliable 5-pole crimp connector.

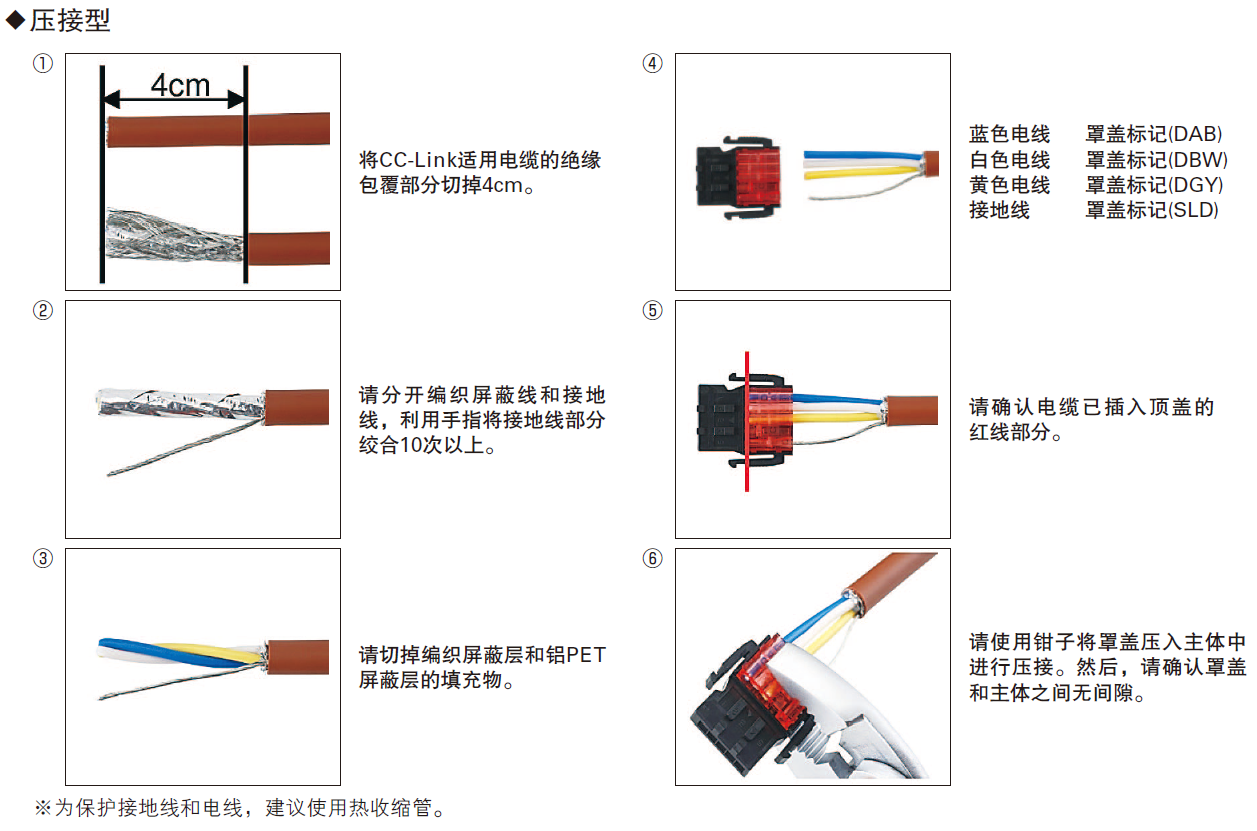

• Only need to insert the cable into the hole corresponding to the male end of the cable, and use tools
• It can be connected by crimping, with compact structure and high reliability.
• A maximum of 6A (0.5mm) can be realized for each pole at the same time with 5 poles ²） Current capacity of.
• For 0.5 mm ² (AWG20) core wire diameter φ 2.2 to 3.0 mm outside diameter of insulation cladding.
• E-CON connectors of different colors are selected according to the cable parameters
The color indicates different parameters, and the transparent cover can directly confirm the cable status with eyes
